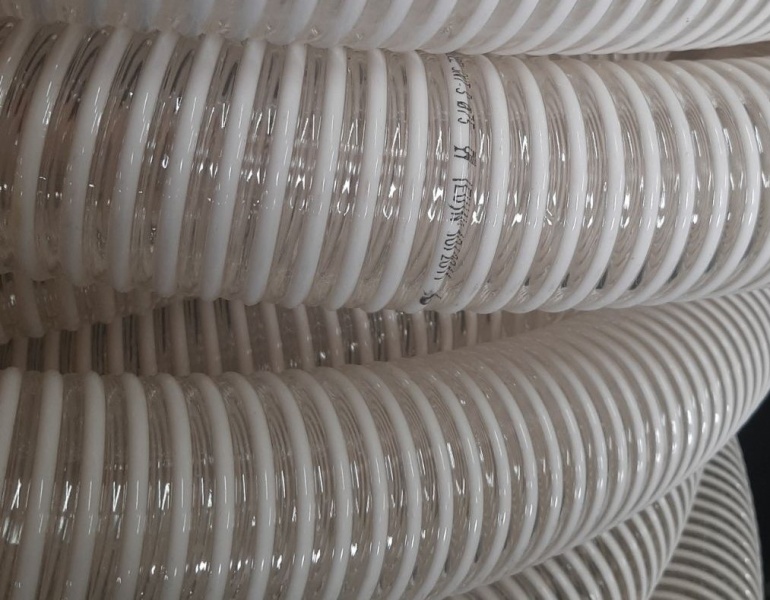

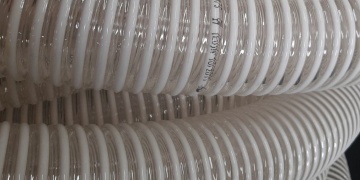

Hose for Food and Beverages with up to 50% alcohol content - Spirabel® S.N.T.-S
PVC hose for suction and transportation of Wine and Alcoholic beverages with up to 50% alcohol content, Fruit juices, Milk, etc.
SPIRABEL® S.N.T.-S is lightweight, very flexible and resistant to food, wine, light chemicals and liquids with alcohol up to 50%.
Its extremely smooth inner wall guarantees low flow losses.
The outer wall of the hose is smooth up to Ø 70 mm, which facilitates its easy installation using clamps and reduces the risk of damage caused by abrasion.
The transparency of the hose allows observation of the transferred
products.
SPIRABEL® S.N.T.-S can be used to transfer food liquids and alcohol up to 50% at 60°C.
Inner layer: Made of transparent, plasticized, flexible, smooth, non-toxic PVC.
Reinforcement: Impact-resistant PVC spiral.
Outer coating: Resistant to crushing, wear and abrasion, weatherproof.
Temperature range: -15°C to + 60°C.
Application:
• Suction and transport of food liquids, milk, wines, liqueurs and others with up to 50% alcohol, fruit juices, mineral water, etc.
• Irrigation, pumps.
• Seeders
• Transfer of low-abrasive powders.
Certified for food according to standard - EC 10/2011 A-B-C-D1 - EC 1935.
Manufacturer: TRICOFLEX - France
| Article No. | Price (per meter) | Quantity (meters) | Inner Ø mm | Inner Ø inch | Vacuum bar | Working pressure bar | Burst pressure bar | Bending radius mm | Weight kg/m |
| 0401160100 | 2,90 € |
| 20 | 3/4" | -0,90 | 7 | 21 | 60 | 0,242 |
| 0401160200 | 2,96 € |
| 25 | 1" | -0,90 | 7 | 21 | 75 | 0,300 |
| 0401160600 | 4,10 € |
| 30 | 1 3/16" | -0,90 | 6 | 18 | 90 | 0,359 |
| 0401160800 | 4,24 € |
| 32 | 1 1/4" | -0,90 | 6 | 18 | 95 | 0,387 |
| 0401161000 | 4,84 € |
| 35 | 1 3/8" | -0,90 | 6 | 18 | 105 | 0,475 |
| 0401161200 | 4,92 € |
| 38 | 1 1/2" | -0,90 | 6 | 18 | 115 | 0,504 |
| 0401161400 | 5,02 € |
| 40 | 1 9/16" | -0,90 | 6 | 18 | 120 | 0,523 |
| 0401161600 | 6,01 € |
| 45 | 1 3/4" | -0,90 | 5 | 15 | 135 | 0,614 |
| 0401161800 | 6,76 € |
| 50 | 2" | -0,90 | 5 | 15 | 150 | 0,736 |
| 0401162200 | 9,31 € |
| 55 | 2 1/4" | -0,90 | 5 | 15 | 165 | 0,784 |
| 0401162400 | 9,64 € |
| 60 | 2 3/8" | -0,90 | 5 | 15 | 180 | 0,873 |
| 0401162600 | 10,39 € |
| 63 | 2 1/2" | -0,90 | 5 | 15 | 190 | 0,960 |
| 0401162800 | 12,59 € |
| 70 | 2 3/4" | -0,90 | 4 | 12 | 210 | 1,040 |
| 0401163000 | 12,80 € |
| 76 | 3" | -0,90 | 4 | 12 | 300 | 1,200 |
| 0401163200 | 13,51 € |
| 80 | 3 1/8" | -0,90 | 3 | 9 | 320 | 1,350 |
| 0401163400 | 18,31 € |
| 90 | 3 1/2" | -0,90 | 3 | 9 | 360 | 1,650 |
| 0401163600 | 18,30 € |
| 100 | 4" | -0,90 | 3 | 9 | 500 | 1,970 |
| 0401164000 | 21,74 € |
| 110 | 4 5/16" | -0,90 | 3 | 9 | 550 | 2,310 |
| 0401164200 | 25,54 € |
| 120 | 4 3/4" | -0,90 | 3 | 9 | 600 | 2,540 |
| 0401164800 | 55,68 € |
| 151 | 6" | -0,90 | 3 | 9 | 755 | 4,200 |
