DexyFlex®
DS1
DS1

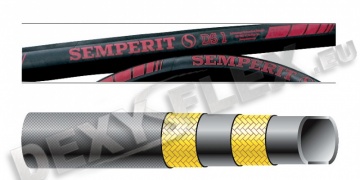

STEAM HOSE
Application: Suitable for conveying saturated steam and hot water.
Feature: Electrically conductive: Resistance R<106Ohm.
Tried and tested by the chemical industry.
Standard/approval:EN ISO 6134:2005 Type 2, class A; (supersedes DIN 2825:1994).
Notice:Hose conforms to DIN 2825:1994, which has been superseded by EN ISO 6134:2005.
ATTENTION: Use only suitable fittings (clamp fittings according to EN 14423:2005).
ATTENTION: Superheated steam shortens considerably the service life of the hose!
ATTENTION: Please refer to our saturated steam table.
Vacuum resistance up to ID 32: - 0.8 bar; up to ID 50: -0.4 bar
* No EN ISO 6134:2005 dimension
Tube: EPDM, black, smooth, electrically conductive
Reinforcement: Steel wire braided, zinc-plated
Cover: EPDM, black, electrically conductive, cloth impression
Temperature range: +210°C (saturated steam), +120°C (hot water)
Safety factor: Steam 10: 1, Water 3.15 : 1
| Article No. | Price (per meter) | Quantity (meters) | Internal Ø mm | Internal Ø inch | External Ø in mm | Wall width in mm | Work. pressure / bar Satur. steam | Working pressure / bar Hot water | Bending radius in mm | Weight kg/m |
| 0807010300 | 20,68 € |
| 13 | 1/2 | 25 | 6 | 18 | 55 | 80 | 0.55 |
| 0807010700 | 21,48 € |
| 19 | 3/4 | 31 | 6 | 18 | 55 | 110 | 0.7 |
| 0807010900 | 23,20 € |  | 19 | 3/4 | 33 | 7 | 18 | 55 | 110 | 0.85 |
| 0807011100 | 31,04 € |
| 25 | 1 | 40 | 7.5 | 18 | 55 | 180 | 1.1 |
| 0807011300 | 33,44 € |
| 32 | 1 1/4 | 48 | 8 | 18 | 55 | 250 | 1.55 |
| 0807011500 | 37,73 € | | 38 | 1 1/2 | 54 | 8 | 18 | 55 | 300 | 1.8 |
| 0807012100 | 51,05 € |
| 50 | 68 | 9 | 18 | 55 | 420 | 2.65 |
