DexyFlex®
S 8
S 8
This hydraulic crimper is the optimum choice both for use in workshops and for crimping hydraulic hose assemblies up to 2” and industrial hose assemblies up to 4”. Crimp force: 2200 kN / 220 t, maximum crimp range: 139 mm.
S 8 package = machine + PB Ø 17, 20, 24, 28, 32, 40, 44, 50, 57, 71 + 237.239.2L2 + QDS 239 B + QDC 239.5
Optional type of dies 239L 237L:
239L Ø: 6.8, 9, 12, 14, 16, 19, 22, 26, 36, 47, 54, 62
237L Ø: 9, 12, 14, 16, 19, 22, 26, 36, 47, 54, 62, 67, 74, 78, 84, 86, 90, 96, 103, 106, 111, 116,121, 126, 131

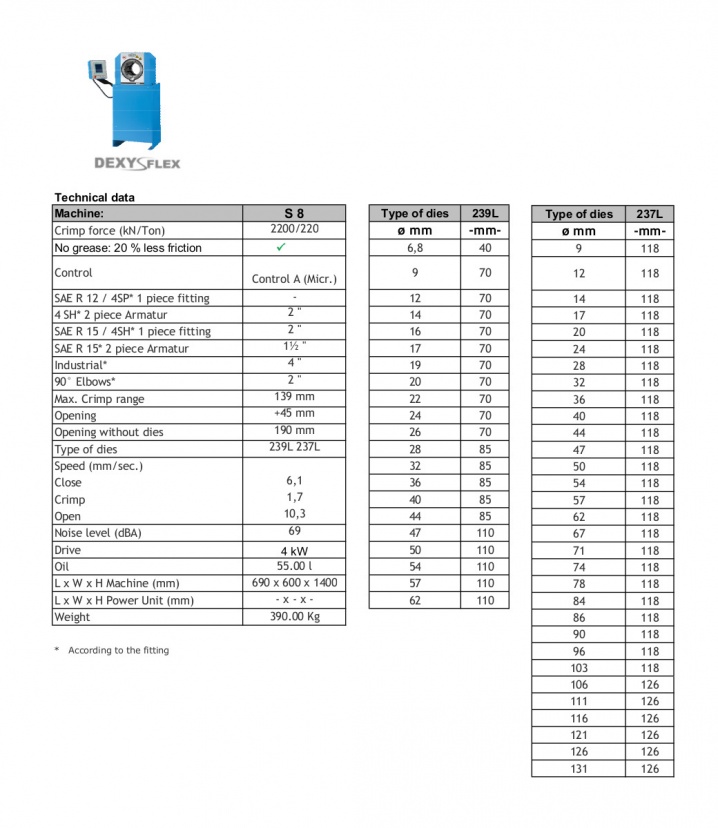

Technical characteristics: here
We reserve the right to make technical changes without notice.
| Article No. | Price (pcs.) | Quantity (pcs.) | Crimp force (kN/Ton) | No grease: 20% less friction | Control | Max. crimp range | Opening | Opening without dies | Drive |
| ********** | - | - | 2200 / 220 | yes | Control A (Micr.) | 139 mm | +45 mm | 190 mm | 4 kW |
