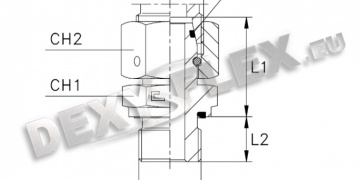

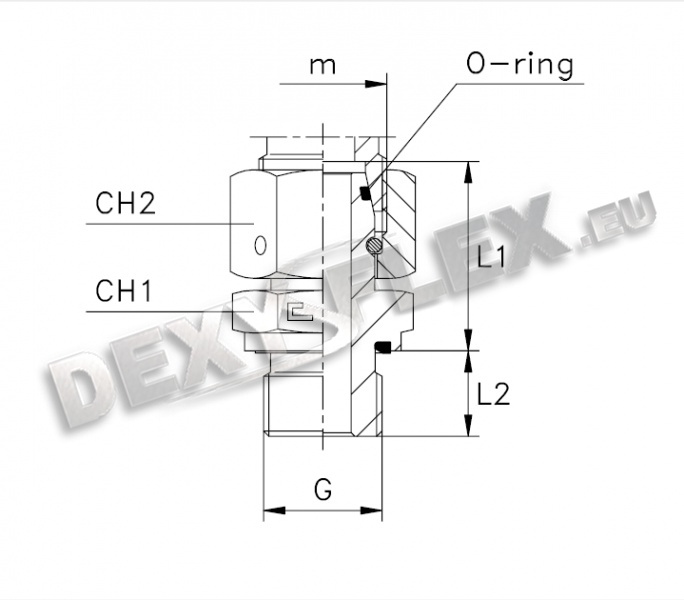

Male stud coupling, with swivel nut and elastomer seal BSP
| Article No. | Price (pcs.) | Quantity (pcs.) | Type | Ø mm | G inch | Working pressure bar |
| ********** | - | - | L | 6 | 1/8 | 500 |
| ********** | - | - | L | 8 | 1/4 | 500 |
| ********** | - | - | L | 10 | 1/4 | 500 |
| ********** | - | - | L | 12 | 3/8 | 400 |
| 3160050810 | 5,98 € |  | L | 15 | 1/2 | 400 |
| ********** | - | - | L | 18 | 1/2 | 400 |
| ********** | - | - | L | 22 | 3/4 | 250 |
| ********** | - | - | L | 28 | 1 | 250 |
| ********** | - | - | L | 35 | 11/4 | 250 |
| ********** | - | - | L | 42 | 11/2 | 250 |
| ********** | - | - | S | 6 | 1/4 | 800 |
| ********** | - | - | S | 8 | 1/4 | 800 |
| ********** | - | - | S | 10 | 3/8 | 800 |
| ********** | - | - | S | 12 | 3/8 | 630 |
| ********** | - | - | S | 14 | 1/2 | 630 |
| ********** | - | - | S | 16 | 1/2 | 630 |
| ********** | - | - | S | 20 | 3/4 | 420 |
| ********** | - | - | S | 25 | 1 | 420 |
| ********** | - | - | S | 30 | 11/4 | 420 |
| ********** | - | - | S | 38 | 11/2 | 420 |
| ********** | - | - | L | 6 | 1/4 | 500 |
| ********** | - | - | L | 10 | 3/8 | 400 |
| ********** | - | - | L | 12 | 1/4 | 400 |
| ********** | - | - | L | 12 | 1/2 | 400 |
| ********** | - | - | L | 15 | 3/8 | 400 |
| ********** | - | - | L | 15 | 3/4 | 250 |
| ********** | - | - | L | 18 | 3/4 | 250 |
| ********** | - | - | L | 22 | 1 | 250 |
| ********** | - | - | L | 28 | 3/4 | 250 |
| ********** | - | - | L | 35 | 1 | 250 |
| ********** | - | - | L | 35 | 11/2 | 250 |
| ********** | - | - | S | 6 | 1/8 | 500 |
| ********** | - | - | S | 8 | 3/8 | 800 |
| ********** | - | - | S | 10 | 1/4 | 800 |
| ********** | - | - | S | 10 | 1/2 | 630 |
| ********** | - | - | S | 12 | 1/4 | 630 |
| ********** | - | - | S | 12 | 1/2 | 630 |
| ********** | - | - | S | 14 | 3/8 | 630 |
| ********** | - | - | S | 16 | 3/8 | 630 |
| ********** | - | - | S | 20 | 1/2 | 420 |
| ********** | - | - | S | 20 | 1 | 420 |
| ********** | - | - | S | 25 | 1/2 | 420 |
| ********** | - | - | S | 25 | 3/4 | 420 |
| ********** | - | - | S | 25 | 11/4 | 420 |
| ********** | - | - | S | 30 | 1 | 420 |
| ********** | - | - | S | 30 | 11/2 | 420 |
| ********** | - | - | S | 38 | 11/4 | 420 |
