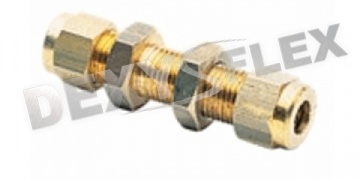

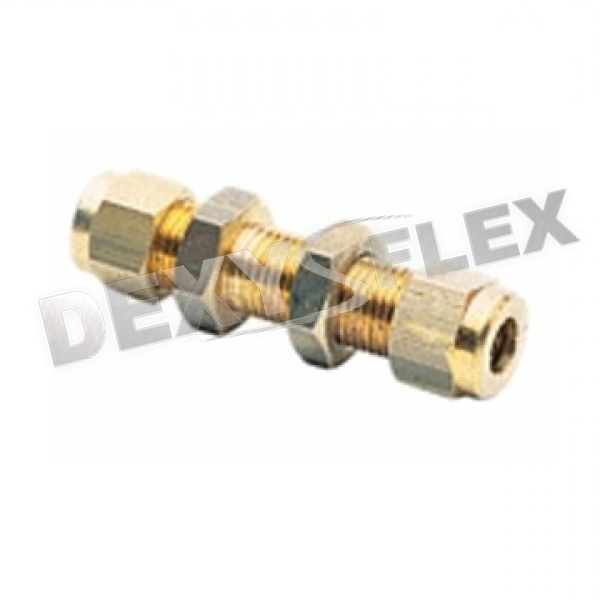

Bulkhead connector with cutting ring - 10465
Bulkhead connector with cutting ring
Fluids: Watter, compressed air, oils, fluids in general for the hydraulic and pneumatic
Size - Maximum pressure advised
ø 4 - 150 kg/cmq. - 148.4 Bar
ø 6 150 kg/cmq. - 148.4 Bar
ø 8 130 kg/cmq. - 128.6 Bar
ø 10 180 kg/cmq. - 178.1 Bar
ø 12 150 kg/cmq. - 148.4 Bar
ø 14 115 kg/cmq. - 113.3 Bar
ø 16 75 kg/cmq. - 74.2 Bar
ø 18 60 kg/cmq. - 59.4 Bar
ø 22 40 kg/cmq. - 39.6 Bar
| Article No. | Price (pcs.) | Quantity (pcs.) | Tube mm | L | L1max | CH1 | CH2 |
| 0710465040 | 4,42 € |
| 4 | 46,5 | 15 | 10 | 13 |
| 0710465060 | 4,69 € |
| 6 | 51,5 | 15 | 14 | 14 |
| 0710465080 | 5,52 € |
| 8 | 53 | 15 | 14 | 17 |
| 0710465100 | 7,73 € |
| 10 | 61,5 | 16 | 19 | 21 |
| 0710465120 | 9,94 € |
| 12 | 67,5 | 20 | 22 | 24 |
| 0710465140 | 11,59 € |
| 14 | 72 | 20 | 24 | 24 |
