PPV3 - AG

PPV3 - AG

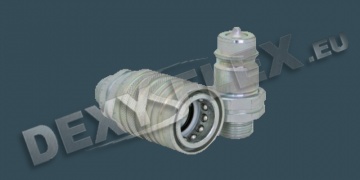

Hydraulic quick coupling



Standart: ISO 7241 - 1 A

Sleeve: double acting

Occlusion: poppet

Locking: radial balls

Material: steel

Finishing: Zn-Fe (Cr III)

Threads: METRIC

Version: BSP, NPT, SAE thread

Standart seals: NBR

Working temperature: -25 Co - +100 Co

Optional seals: FKM, EPDM and more

Working pressure: 225-350 bar

Connection under pressure: not allowed


Article No.Price (pcs.)Quantity (pcs.)TypeDN mmGPressure bar
303530050214,59 €


F10 mm / 3/8"18x1.5300
30353005038,47 €


M10 mm / 3/8"18x1.5300
303530230212,92 €


F13 mm / 1/2"20x1.5300
30353023036,54 €


M13 mm / 1/2"20x1.5300
303530090212,92 €


F13 mm / 1/2"22x1.5250
30353009036,62 €


M13 mm / 1/2"22x1.5250
